🌐 3Sphere

An Interactive, High-Performance 3D Entity Particle Sphere built with React Three Fiber

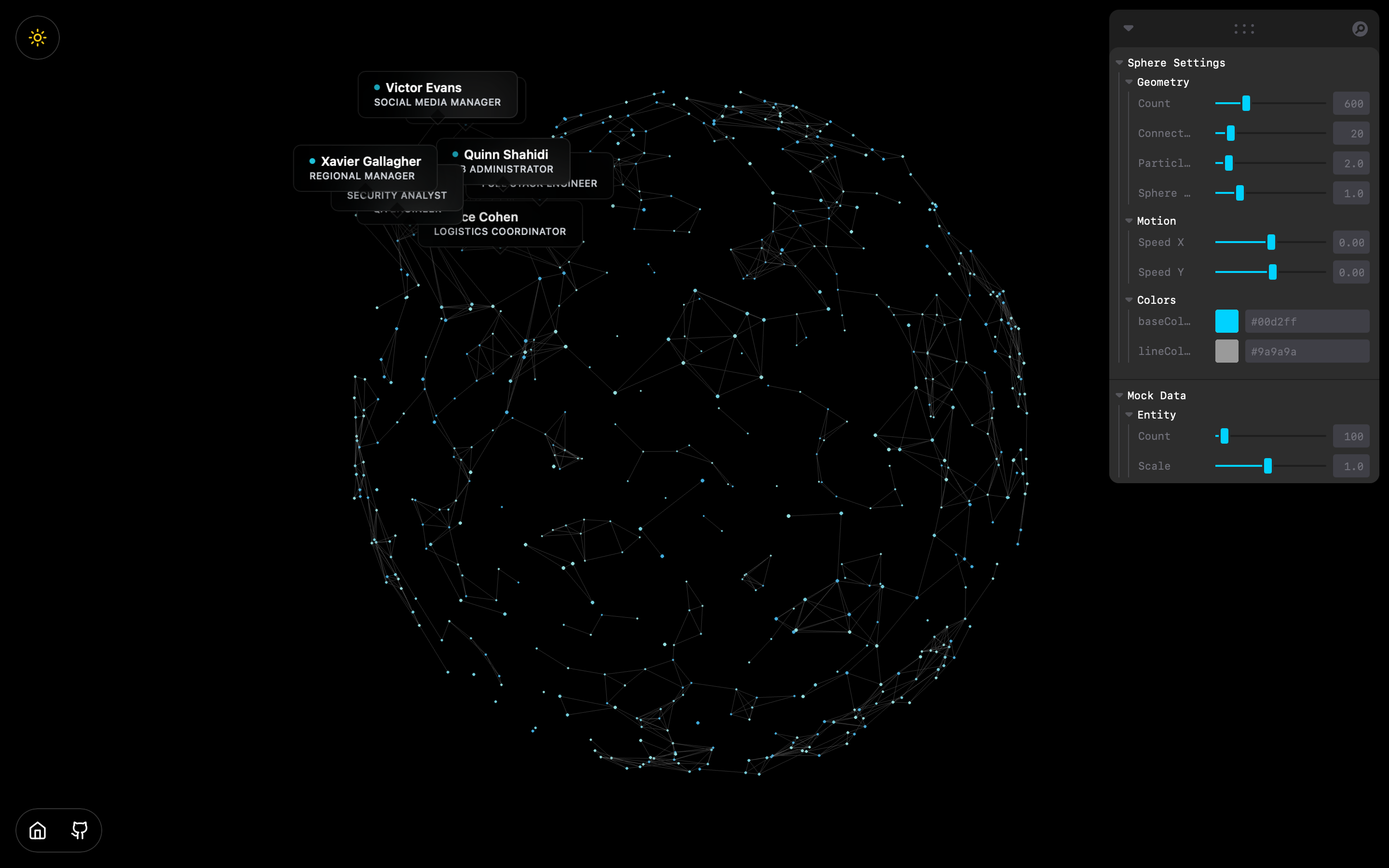

A stunning, highly scalable 3D particle sphere component. Each node in the sphere represents a structural connection or a unique data entity (e.g., team members, social graphs, or network nodes). Hovering over connected entities natively triggers a beautifully animated, glassmorphic data card tracking the specific node in true 3D space!

Live: https://zarox.is-a.dev/3sphere/

✨ Features

• Interactive Node Tracking: Physically rotating the sphere doesn't break hover effects; custom matrix projections ensure tooltips always lock precisely to their assigned moving particles.
• Glassmorphic UI Overlay: Data cards pop up cleanly using framer-motion and @react-three/drei's HTML projections.
• Leva GUI Integration: Instantly manipulate geometry (particle counts, connection limits), size scalars, colors, and continuous multi-axis rotation speeds in real-time.

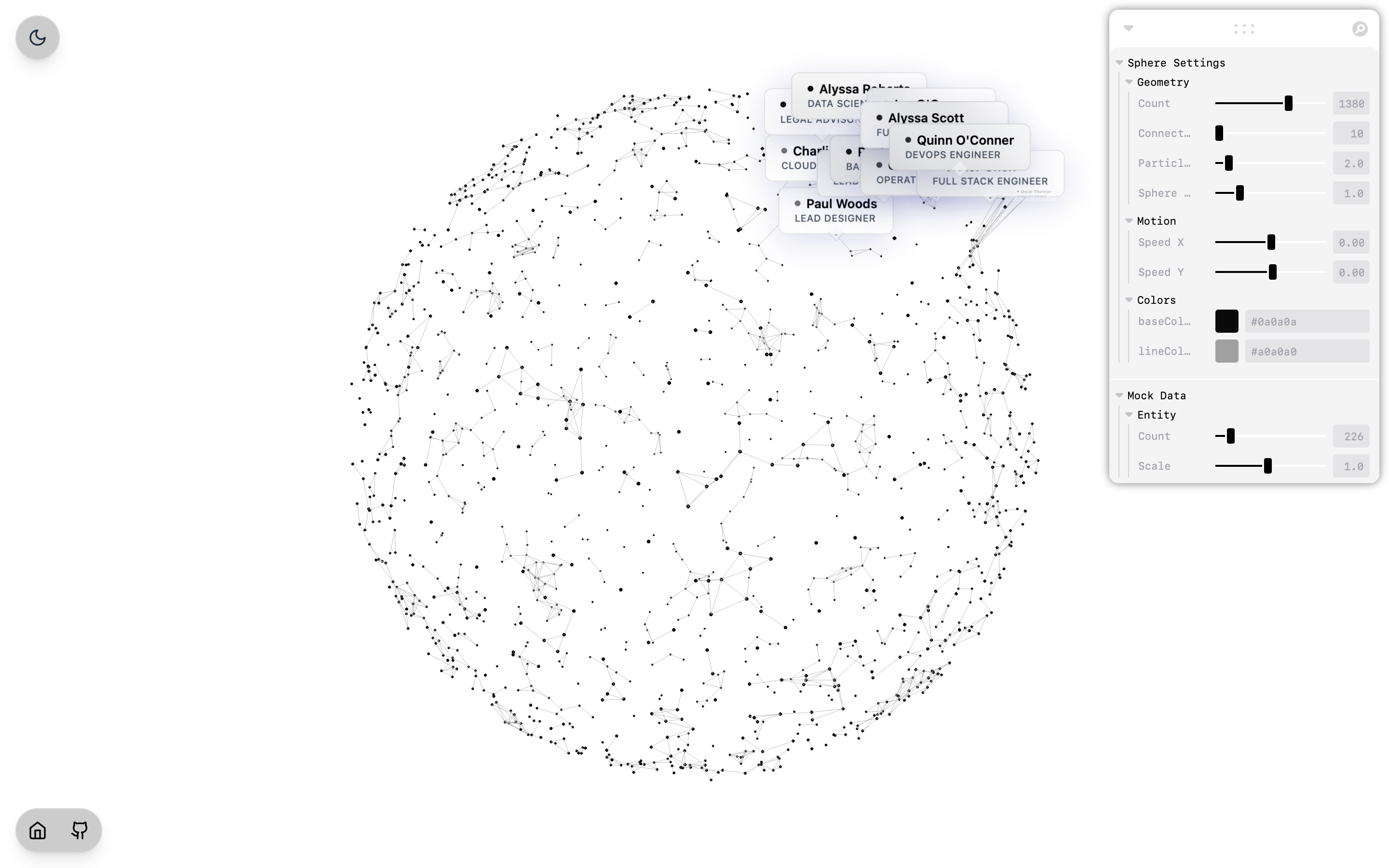

• First-Class Theme Engine: Natively supports Light & Dark modes. Bi-directional tracking instantly passes Theme overrides down from App.tsx directly into the WebGL renderer without dropping frames.
• Dynamic Scale Guards: Structurally maps your JSON entities to local indices. If the particle count drops beneath your data pool length, intelligent bounds logic handles the slice safely!

🚀 Quick Start

Ensure you have a modern React or Vite environment running.

1. Clone & Install Dependencies:

   npm install

2. Start the Development Server:

   npm run dev

Core External Libraries

If you're copying ParticleSphere.tsx into your own project, ensure you have the required 3D and animation dependencies installed:

npm install three @react-three/fiber @react-three/drei framer-motion leva lucide-react

🧩 How to Inject Custom Data

The sphere naturally pulls from useMockData.ts. This structure dictates your dataset must follow an array of objects bearing at least a name and role string formatting (an id string is optionally recommended).

Example Data Integration

Replace the logic in useMockData.ts with your API hook, Zustand state, or a standard hardcoded array:

export interface Entity {
  id: string;
  name: string;
  role: string;
}

export function useMockData() {
  const customData: Entity[] = [
    { id: "01", name: "System Admin", role: "DevOps Engineer" },
    { id: "02", name: "Network Architect", role: "Infrastructure Manager" }
  ];

  return {
    entities: customData,
    json: JSON.stringify(customData, null, 2)
  };
}

The internal ParticleSphere gracefully accepts the entities array and handles random particle assignment and 3D indexing entirely under the hood.

⚙️ Tuning and Settings

You have programmatic, runtime control over how the component calculates physical bounds via the useControls GUI panel floating in the viewport.

• count (Particles): The exact quantity of WebGL Float32Array nodes drawn to the buffer.
• connectDistance: Native WebGL line rendering indices; turning this up establishes significantly denser mesh networks between nearby nodes.
• sphereSize / particleSize: Global scale multipliers directly mapping to the mathematical origins in Local space.
• Entity Count: Precisely dictate exactly how many of your JSON/Mock Entities represent "hoverable" nodes on the sphere against the raw particle count!

Note: Custom Hex palettes manually applied inside the Leva UI map directly into the shader without rebuilding geometry instances—saving tons of GPU overhead!

TODO

• Fix Rotation Angle
• Add more features

LICENSE

GNU Affero General Public License v3.0
