Cascade

Cascade orchestrates AI agents (Claude Code, Codex, opencode, LLMist) across your workflows in GitHub, Trello, and Jira.

Cascade is an open-source platform that automates the full software development lifecycle. Connect your PM tool and GitHub repository, and Cascade drives work items from plan to merge:

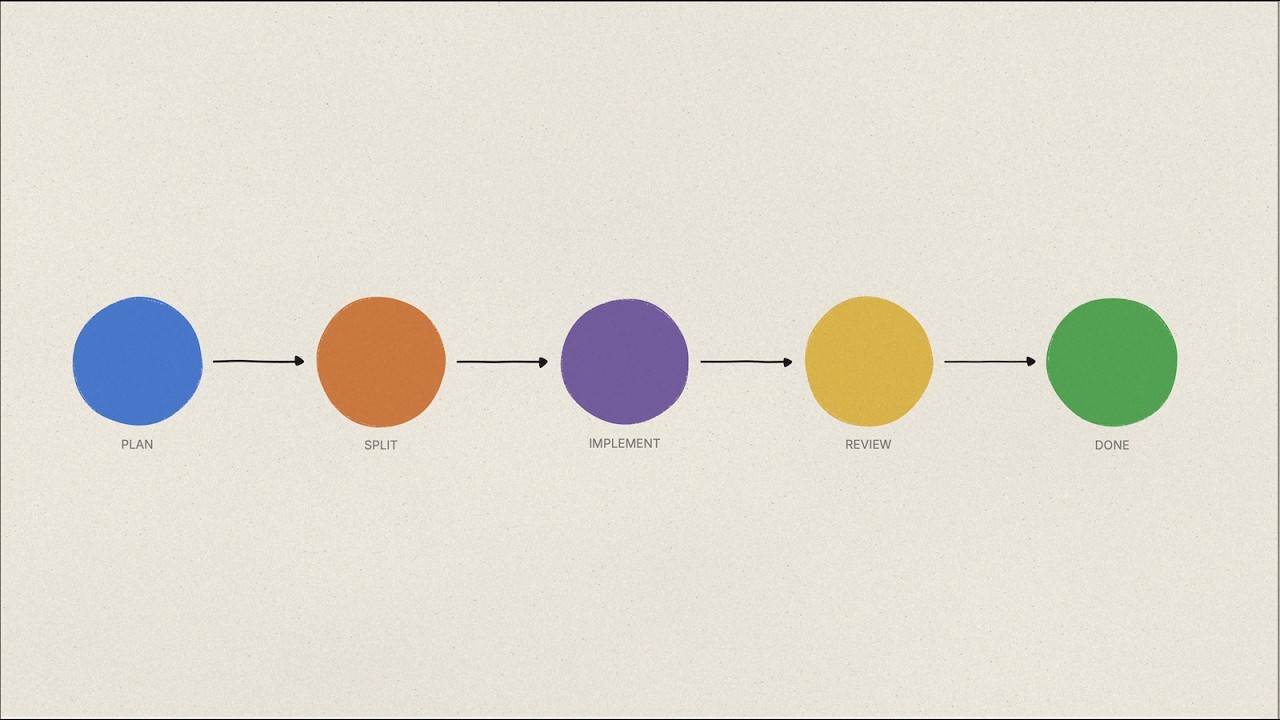

PM Card → Split → Plan → Implement → PR → Review → Iterate → Merge

---

🚀 Quick Start

git clone https://github.com/mongrel-intelligence/cascade.git
cd cascade
cp .env.docker.example .env    # Edit if needed
bash setup.sh                  # Build, migrate, and start all services
docker compose exec dashboard node dist/tools/create-admin-user.mjs \
  --email admin@example.com --password changeme --name "Admin"

Open http://localhost:3001 and log in with your admin credentials.

For the full setup walkthrough — projects, credentials, webhooks, and triggers — see Getting Started.

---

⚡ Features

• Multi-PM support — Works with Trello and JIRA out of the box
• 11 agent types — Splitting, planning, implementation, review, debug, respond-to-review, respond-to-CI, and more
• Dual-persona GitHub model — Separate implementer and reviewer bot accounts to prevent feedback loops
• Web dashboard + CLI — Monitor runs, manage projects, configure triggers
• Extensible trigger system — Add new events without touching core logic
• Pluggable agent engines — claude-code (default), llmist, codex, and opencode built-in; easy to extend
• Credential encryption — AES-256-GCM encryption for all stored secrets
• Agent resilience — Built-in rate limiting, exponential-backoff retry, and context compaction

---

🏗️ Architecture

Cascade runs as three independent services:

Service	Entry Point	Role
Router	src/router/index.ts	Receives webhooks, enqueues jobs to Redis via BullMQ
Worker	src/worker-entry.ts	Processes one job per container, exits when done
Dashboard	src/dashboard.ts	Serves the API (tRPC) and web UI

🤖 Agent Types

Agent	Trigger	What it does
splitting	PM status change	Splits a large card into smaller work items
planning	PM status change	Creates a detailed implementation plan on the card
implementation	PM status change	Writes code and opens a pull request
review	CI pass / PR opened / review requested	Reviews a pull request
respond-to-review	Reviewer requests changes	Addresses review feedback
respond-to-ci	CI failure	Diagnoses and fixes failing CI checks
respond-to-pr-comment	PR comment	Responds to comments on a PR
respond-to-planning-comment	Planning card comment	Updates the plan based on feedback
debug	Session log uploaded	Analyzes agent session logs and creates a debug card
resolve-conflicts	Merge conflict detected	Resolves git merge conflicts
backlog-manager	Scheduled / manual	Manages and prioritizes the backlog

---

🛠️ Development

Prerequisites: Node.js 22+, PostgreSQL, Redis

npm install && cd web && npm install && cd ..
cp .env.example .env    # Set DATABASE_URL and REDIS_URL
npm run db:migrate

Start all three services with one command (requires a build first):

npm run build
npm run dev:all   # Router + Dashboard API + Frontend, color-coded output

Or start each service in a separate terminal:

npm run dev                                        # Router (:3000)
node --env-file=.env dist/dashboard.js             # Dashboard API (:3001)
npm run dev:web                                    # Frontend (Vite, :5173)

Note: The Vite dev server proxies /trpc and /api to localhost:3001, so the Dashboard API must be running for the frontend to work.

Commands

Command	Description
npm test	Run unit tests (Vitest)
npm run test:integration	Run integration tests (requires PostgreSQL)
npm run lint	Check code style (Biome)
npm run lint:fix	Auto-fix lint issues
npm run typecheck	TypeScript type checking
npm run build	Compile TypeScript to dist/
npm run db:migrate	Apply pending migrations
npm run db:studio	Open Drizzle Studio
npm run dev:all	Start all services (router + dashboard + frontend)
npm run verify	Lint + typecheck + unit tests (pre-PR check)

---

🚢 Deployment

The included docker-compose.yml runs all services with a single command. Workers are spawned dynamically by the Router via Docker socket.

Image	Dockerfile	Purpose
Dashboard + Frontend	Dockerfile.selfhosted	API server + web UI (combined)
Router	Dockerfile.router	Webhook receiver, worker orchestration
Worker	Dockerfile.worker	Full agent runtime (clones repos, runs AI)

Required production environment variables:

DATABASE_URL=postgresql://user:pass@host:5432/cascade
REDIS_URL=redis://your-redis-host:6379
CREDENTIAL_MASTER_KEY=<64-char hex>   # Generate: openssl rand -hex 32

All project-level credentials (GitHub tokens, PM keys, LLM API keys) are stored in the database and managed through the dashboard or CLI.

---

🔑 Key Concepts

Dual-persona GitHub model — Cascade uses two separate GitHub bot accounts per project (implementer and reviewer) to prevent feedback loops. The implementer writes code and creates PRs; the reviewer reviews and approves them.

Trigger system — Events from Trello, JIRA, and GitHub webhooks are matched against registered TriggerHandler instances. Triggers are configured per-project in the database.

Agent engines — Agents run through a shared execution lifecycle with a pluggable engine registry. Default engine is claude-code (Anthropic Claude Code SDK). Alternatives: llmist (supports OpenRouter, Anthropic, OpenAI), codex (OpenAI Codex CLI), opencode (OpenCode server).

Credential management — All secrets are stored in the project_credentials table, scoped to a project. Optional AES-256-GCM encryption via CREDENTIAL_MASTER_KEY.

.cascade/ directory — Each target repository can include a .cascade/ directory with hooks that control how the agent sets up the project, lints after edits, and runs tests. See .cascade/ Directory Guide.

For deeper documentation on all of these topics, see CLAUDE.md.

---

🤝 Contributing

1. Fork the repository and create a feature branch from dev
2. Make your changes with tests (npm test)
3. Ensure all checks pass (npm run verify)
4. Open a pull request — Cascade will review its own PRs if configured to do so

Please follow Conventional Commits for commit messages. See CONTRIBUTING.md for the full guide.

---

📄 License

MIT
